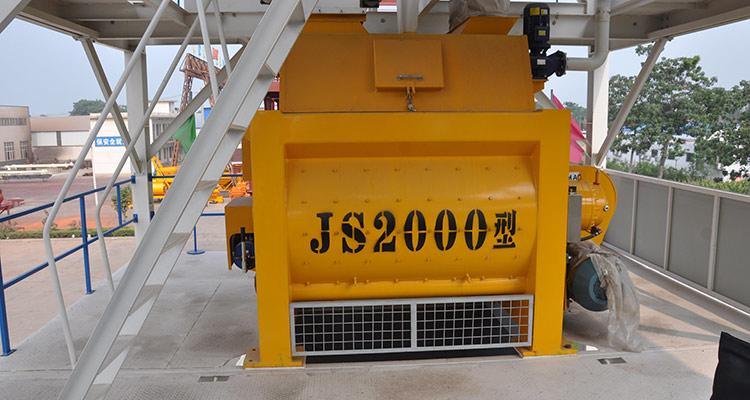

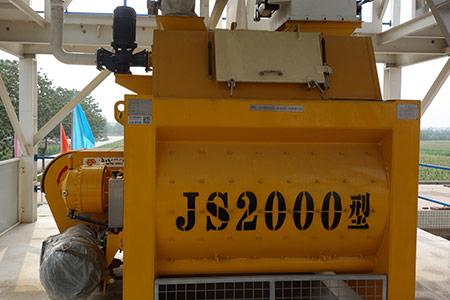

Mixer Beton JS2000
Introducción
JS2000 series concrete mixer is a kind of double shafts forced type mixer, it can be used separately and can be used together with a concrete batching machine to be a simple type concrete batching plant. It is being widely used in various scale of prefabricate concrete parts factory, and much construction of road and bridge, dam, port and so on. It could be used to produce dry concrete, plastic concrete, fluidity concrete, lightweight aggregate and various kinds of mortar.
- hamacchina
- 0086-371-86525099
- sales@hamacchina.com
- 0086-15136236223

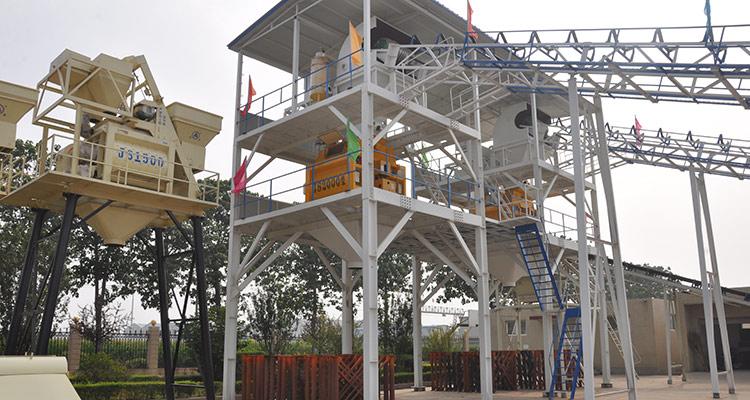

Clients' Working Site
Advantage
1. Special drum prolongs the service life of the steel wire rope.
2. Precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose Hamac.
5. Concrete intensity test proves the excellent performance of the mixing equipment.
Specification
| Model | JS500 | JS750 | JS1000 | JS1500 | JS2000 | JS3000 | JS3500 | JS4000 | |
| Discharging volume (L) | 500L | 750L | 1000L | 1500L | 2000L | 3000L | 3500L | 4000L | |
| Feeding volume (L) | 800L | 1200L | 1600L | 2400L | 3200L | 4800L | 5600L | 6400L | |
| Capacity | ≥25m³/h | ≥37.5m³/h | ≥50m³/h | ≥75m³/h | ≥100m³/h | ≥150m³/h | ≥180m³/h | ≥200m³/h | |
| Maximum aggregate size (pebble/gravel)mm | 40/50 | 40/60 | 60/80 | 80/100 | 80/100 | 80/120 | 80/120 | 80/120 | |
| Cycle time (S) | 72 | 72 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Total weight (kgs) | 4000 | 5500 | 8700 | 11300 | 15000 | 11450 | 12000 | 19000 | |
| Discharge height (m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |
| Mixing blade | Rotary speed | 35r/min | 26r/min | 29.6r/min | 24.5r/min | 24.5r/min | 21r/min | 21r/min | 21r/min |
| Quantity | 2×7 | 2×7 | 2×8 | 2×8 | 2×8 | 2x10 | 2x10 | 2x11 | 2x12 |
| Mixing motor | Model | Y180M-4 | Y200L-4 | Y180M-4 | Y225M-6 | Y250M-6 | Y280M-6 | Y280M-6 | Y315S-6 |
| Power | 18.5kw | 30kw | 2x18.5kw | 2x30kw | 2X37kw | 2X55kw | 2X55kw | 2X55kw | |
| Hoist motor | Model | YEZ1325-4-B5 | YEZ132M-4-B5 | YEZ160L-4 | YEZ180L-4 | YEJ180L-4 | Y25M -4 | Y25M -4 | Y25M -4 |
| Power | 5.5KW | 7.5KW | 15KW | 18.5KW | 22KW | 2 × 55 kw | 2 ×55 kw | 2 × 75 kw | |
| Pump motor | Power | 1.1KW | 1.1KW | 3KW | 3KW | 4KW | 5KW | 5KW | 6KW |
