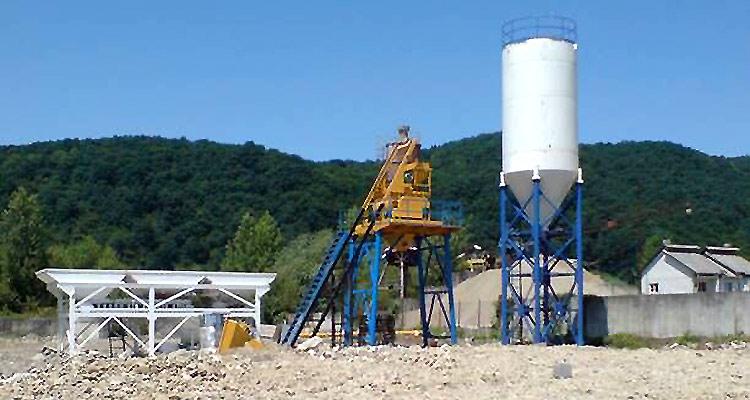

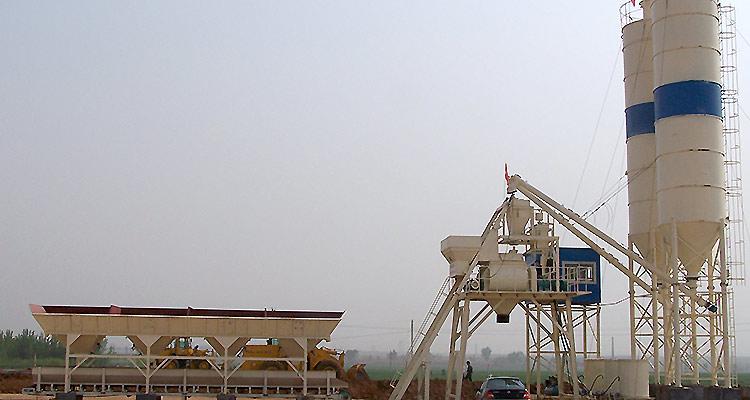

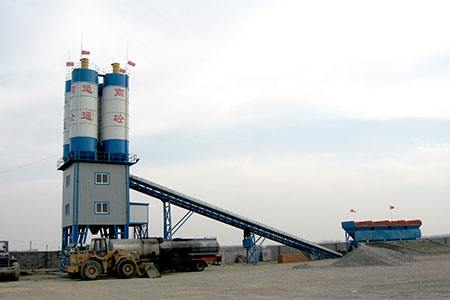

Clients' Working Site
Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS750 twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | HZS35 |
Theoretic productive | 35m3/h |
Concrete mixer | JS750 |
Mixer power | 30kw |
Maximum aggregate size | 80mm |
volume of discharge product | 7.5m3 |
Batcher | PLD1200 |
aggregate transporting way | Bucket conveyor |
aggregate weighing | 2250Kg ±2% |
Cement weighing | 450Kg ±1% |
Water weighing | 300Kg ±1% |
Loading height | 2.84m |
total power | 60Kw |
total weight | 9.35t(the height of discharge 2.7m) |
11.87t(the height of discharge 3.8m) | |
Overall dimension (working condition: LXWXH) | 8685mm×5560mm×6550mm(the height of discharge 2.7m) |
10115mm×5560mm×8405mm(the height of discharge 3.8m) | |
silo (optional) | As client request, the quantity and volume is optional for 50t or 100t. |
screw conveyor (optional) | One φ219 screw conveyor for each silo |
