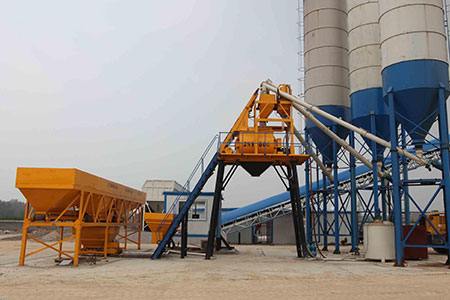

Clients' Working Site
Advantage
1. Modular organization, assembly and disassembly is rapid, easy for transportation. And we have different layout forms which are suitable for clients’ requirement;
2. Adopt the JS1000B twin shafts concrete mixer which work stable and reliable, suitable for different kinds of concrete, high efficiency;
3. All the weighing parts, control parts select the famous brand parts, computerized controlled to guarantee the work performance;
4. All the powder material is transported, weighed, mixer and discharging in a closed working status, so the power and noise are eliminated in a very low level;
5. There is the ladder and platform for the operation and maintenance, and there is high pressure clean system for the mixer;
6. The control system adopts good elements to make sure the system working stable. The system will alarm through different ways if there is something wrong with the system.
Specification
Model | HZS50 |
Theoretic productive | 50m3/h |
Concrete mixer | JS1000B |
Mixer power | 2X18.5kw |
Maximum aggregate size | 80mm |
volume of discharge product | 1m3 |
Batcher | HDP1600A |
aggregate transporting way | Bucket conveyor |
aggregate weighing | 3000Kg ±2% |
Cement weighing | 600Kg ±1% |
Water weighing | 400Kg ±1% |
Loading height | 2.58m |
total power | 85Kw |
total weight | 14.87t(the height of discharge 2.7m) |
17.57t(the height of discharge 3.8m) | |
Overall dimension (working condition: LXWXH) | 10115mm×4070mm×6560mm (the height of discharge 2.7m) |
17012mm×4070mm×8400mm(the height of discharge 3.8m) | |
silo (optional) | As client request, the quantity and volume is optional for 50t or 100t. |
screw conveyor (optional) | One φ219 screw conveyor for each silo |
